Engineering Excellence in Action: How Ruitus Upgraded a Major Vietnamese Steel Mill’s Rotary Joint Solution

The Challenge: Limitations of Multi-Modular Integration

When the client first approached Ruitus, they provided a legacy engineering drawing. This initial design relied on a traditional multi-modular integrated structure (featuring separate housing segments, bolted modular chambers, and multi-piece component assemblies).

While functional in theory, multi-modular rotary joints operating in heavy steel mill environments—where extreme thermal fluctuations, continuous rotation, and high-pressure hydraulic/water loads are standard—frequently face specific maintenance hurdles:

• Cumulative Tolerances: Multiple mating surfaces and joints increase the risk of minor misalignment.
• Sealing Integrity under Stress: Split structures are more susceptible to micro-vibrations, which can gradually loosen internal clearances and lead to premature fluid leakage.
• Maintenance Complexity: More internal components mean more points of potential wear and complicated field servicing.

The Ruitus Solution: Advanced Integral Design (JH-JG-25A)

Leveraging our extensive manufacturing expertise and our status as an Authorized OEM Manufacturing Partner, our engineering team went back to the drawing board. Instead of blindly replicating the legacy split structure, we proposed a superior integral (one-piece) design for the JH-JG-25A model.

Key Engineering Advantages of the Ruitus Upgrade:

1. Superior Concentricity: The core housing is forged and machined as a single, unified body. This eliminates intermediate fitting errors and guarantees exceptional rotational concentricity at high speeds.
2. Enhanced Structural Rigidity: By removing unnecessary structural joints, the one-piece body absorbs high-pressure surges and mechanical shock much more effectively.
3. Zero-Leakage Architecture: Fewer sealing interfaces drastically minimize potential leakage paths, ensuring extended operational lifespans even under harsh steel-mill conditions.
4. Optimized Fluid Pathways: The internal flow channels (incorporating Rp 3/4” and G 3/8” precision ports) were streamlined to reduce pressure drop and fluid turbulence.

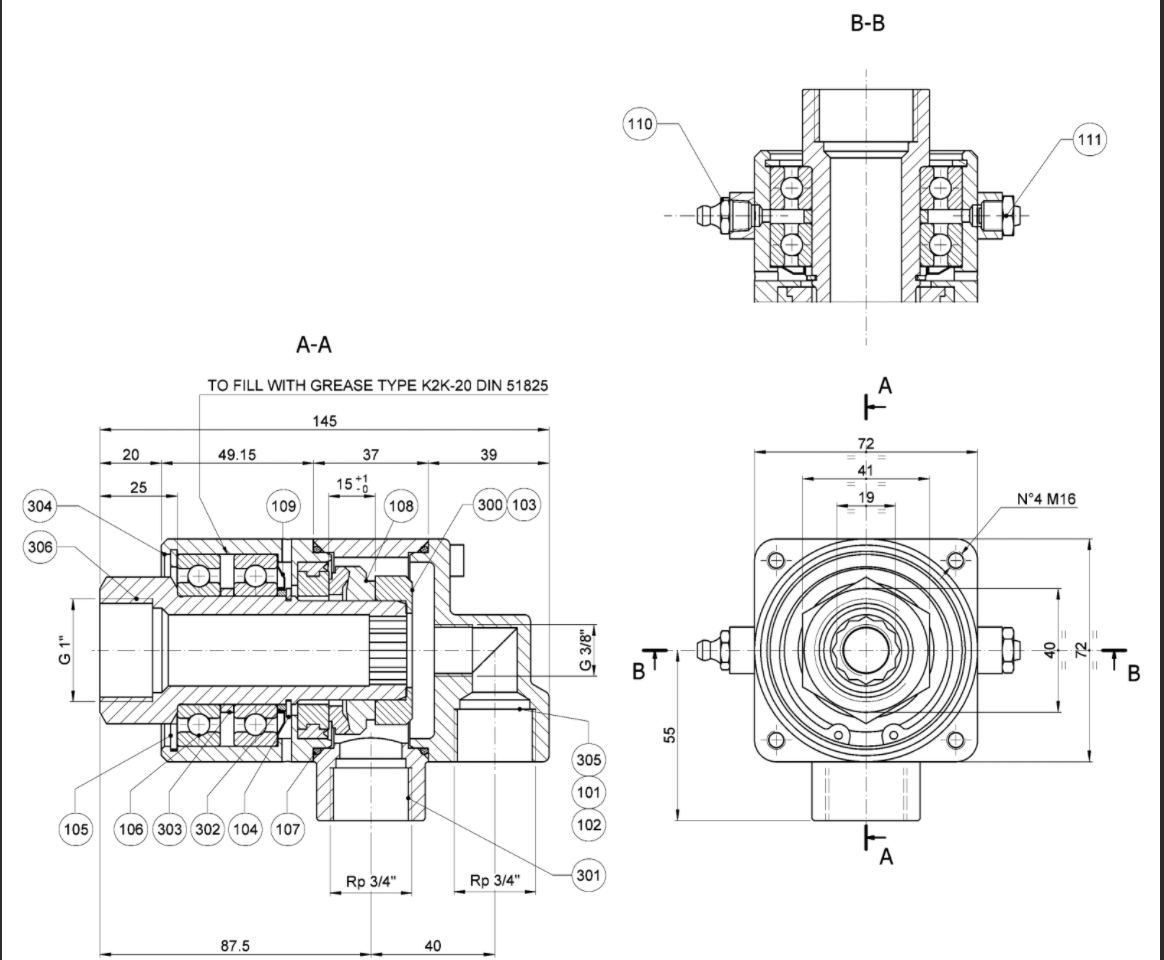

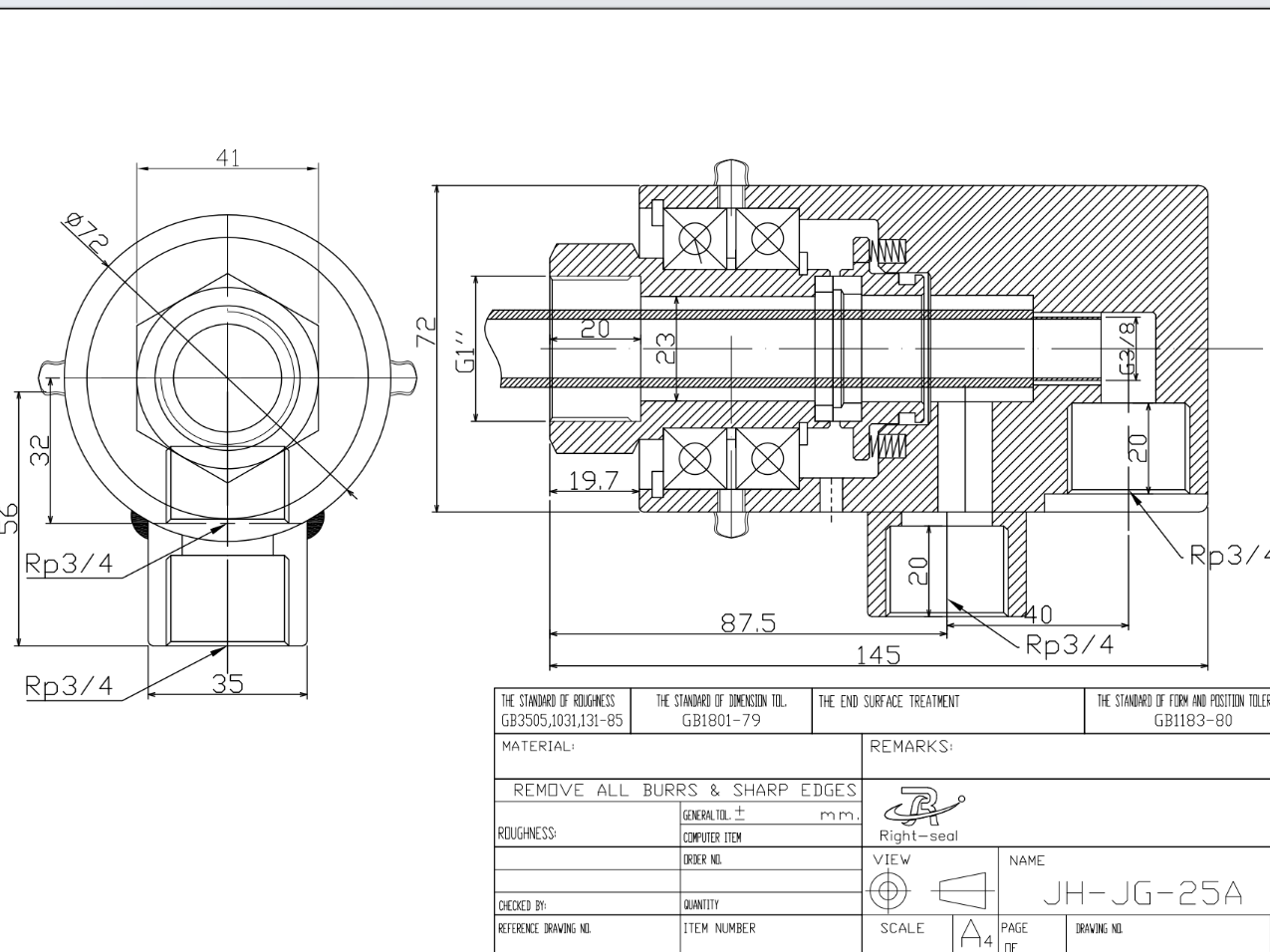

Figure 1: Comparison of the client’s original multi-modular drawing versus the optimized Ruitus integral design (JH-JG-25A).

Client Reception and Seamless Execution

When we presented the optimized integral design to the client’s engineering and purchasing departments in Ho Chi Minh City, their response was overwhelmingly positive. They immediately recognized how the higher concentricity and robust one-piece construction would solve their recurring maintenance pain points.

To back up our technical edge with flawless commercial execution, the project progressed through rigorous quality control, meticulous documentation, and global logistics coordination:

• Precision Documentation: We ensured complete alignment across all shipping documents—including the Commercial Invoice, Packing List, and the official Form E (Certificate of Origin)—describing the goods precisely as: “PARTS OF HYDRAULIC VALVE – ROTARY JOINT, MODEL JH-JG-25A.”
• Rigorous Quality Control & Packaging: All 120 units underwent strict pressure and rotational testing before being securely crated for export.
• Global Credibility: Operating under our strong manufacturing framework, we provided full transparency and responsive communication throughout the holiday operational windows, ensuring zero delays in their pre-clearance schedule.

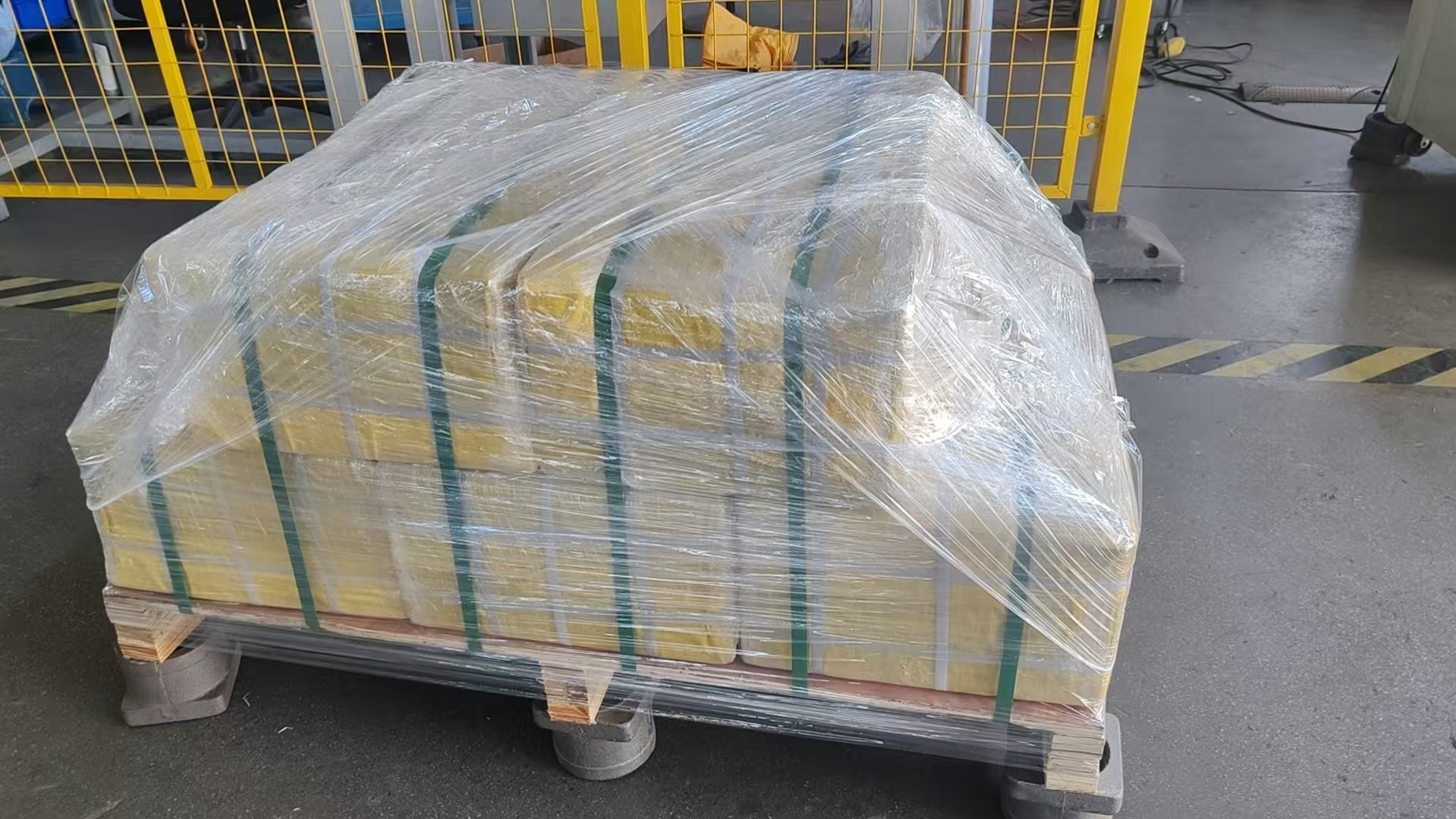

Figure 2: Final packaged goods ready for dispatch to Vietnam.

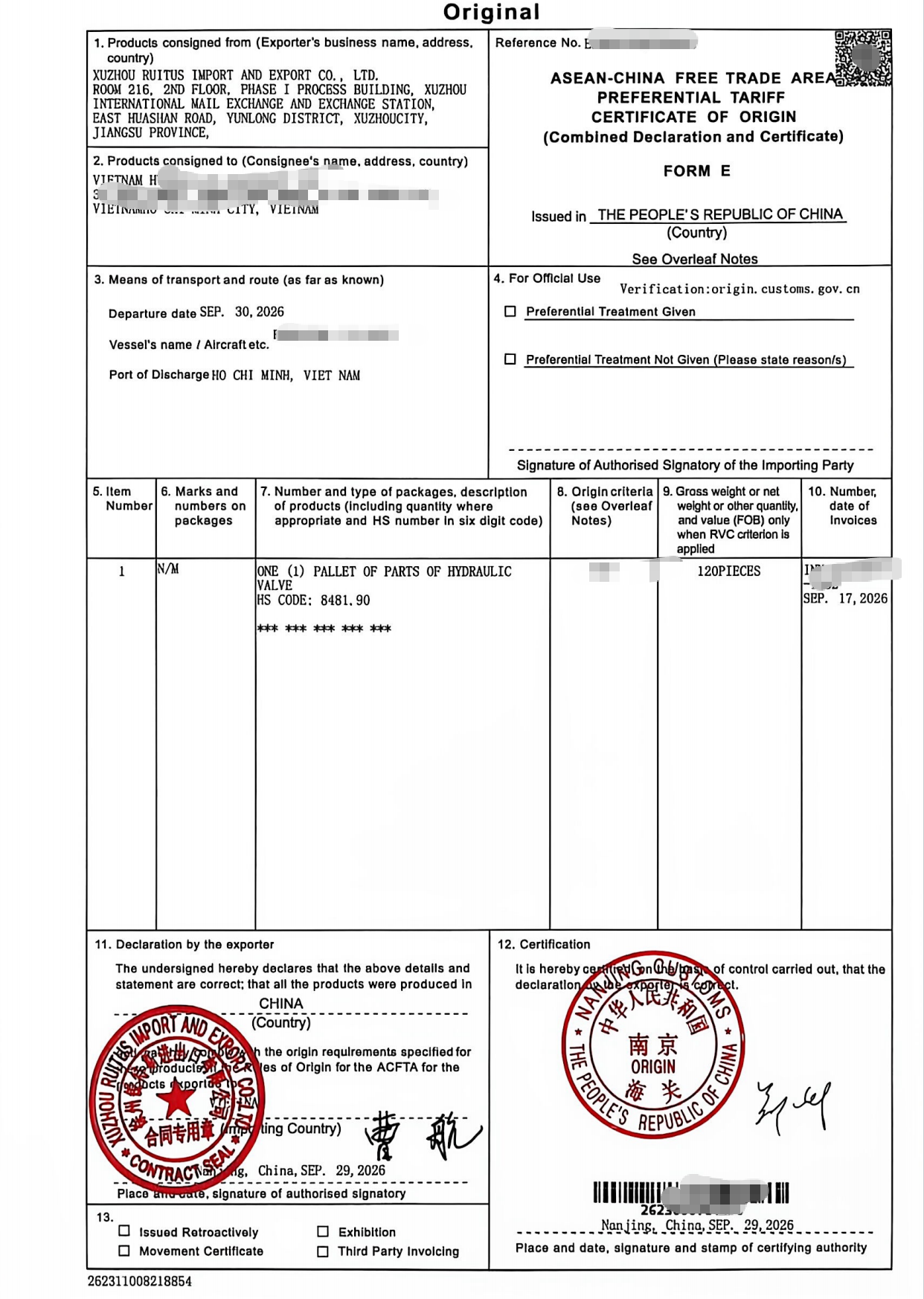

Figure 3: Form E and commercial documentation.

Conclusion

The successful delivery of the JH-JG-25A rotary joints to Vietnam Hydraulics Equipment JSC and its end-user steel plant underscores Ruitus’ core philosophy: We don’t just manufacture parts; we engineer reliability.

By turning a standard component request into an engineering upgrade, Ruitus continues to cement its reputation as a trusted, high-credibility global partner in heavy industrial fluid control.
